Zitadel Onboarding — Default Org + Service User + PAT

After core-service is deployed and healthy, it still runs on placeholder IAM credentials. This page onboards core-service to Zitadel: identify the default organization, create a dedicated service (machine) user, grant it management rights, mint a Personal Access Token (PAT), and wire both the PAT and the org ID into the running service.

Why this is needed

core-service uses Zitadel as its IAM. Two config values are consumed at runtime:

  • iam_service.pat — a service-account token core-service uses to call the Zitadel management API (validate users, create per-user PATs, fetch IDP settings). Used in iam_service/middleware/auth_middleware.py.
  • iam_service.default_org_id — the organization core-service operates in (login flows, IDP settings). Used in services/auth/auth_service.py.

The app starts and passes health checks with placeholders (readiness only checks DB + the Zitadel health URL), but login / user management won't work until these are real.

Prerequisites

  • [x] core-service Deployment Running + Ready in ask
  • [x] Zitadel + zitadel-login pods 1/1; zitadel-setup / zitadel-init jobs Completed
  • [x] sso.ask.mod.auh1.dev.dir in your Mac /etc/hosts → ingress IP (100.115.2.210)
  • [x] Vault reachable + unsealed; you can vault kv put secret/ask/core-service/auh1-dev/*
# /etc/hosts on the Mac (ingress IP for *.ask.mod.auh1.dev.dir)
100.115.2.210  sso.ask.mod.auh1.dev.dir
100.115.2.210  core-service.ask.mod.auh1.dev.dir

Step 1 — Log into the Zitadel console

Open https://sso.ask.mod.auh1.dev.dir (accept the internal-CA cert warning, or trust the air-gap root CA in your keychain).

Field Value
Login name [email protected]
Password Zitadel@ModAuh1Dev1! (the seeded ADMIN_PASSWORD; no forced change)
If the login name differs

The first-instance admin login is zitadel-admin@zitadel.<ExternalDomain>. Confirm the exact value from the setup job:

kubectl logs -n ask job/core-service-zitadel-setup | grep -i "admin\|username\|login"

Verify: you land on the Zitadel console home, showing your default organization.

Step 2 — Get the default organization ID

In the console top nav → Organization. The org detail page shows Resource Id, Primary Domain, and State at the top. Copy the Resource Id (a numeric snowflake string).

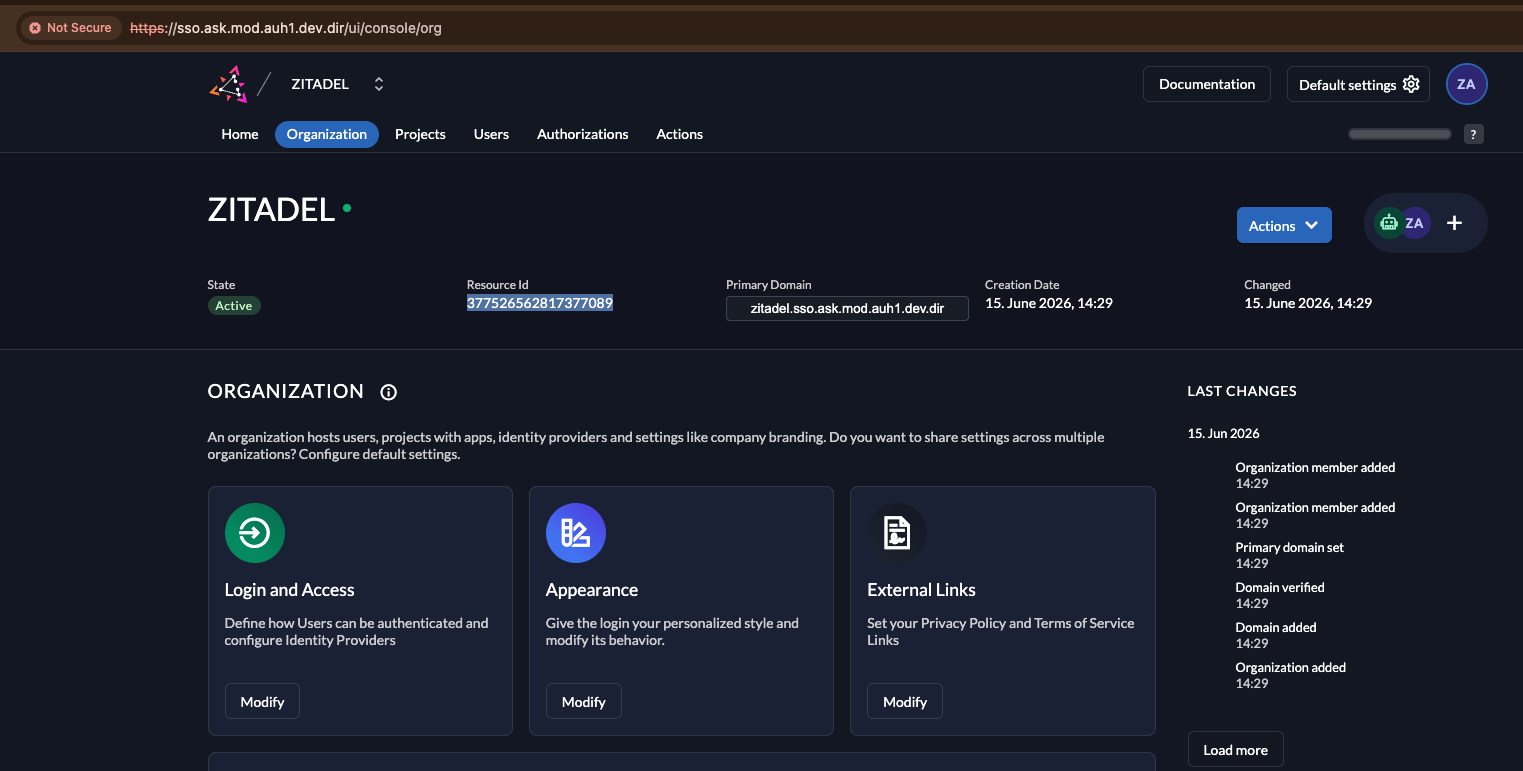

Zitadel Organization page — Resource Id field

This is default_org_id.

This environment (mod-auh1-dev)

Field Value
Organization ZITADEL (default first-instance org)
Resource Id (default_org_id) 377526562817377089
Primary Domain zitadel.sso.ask.mod.auh1.dev.dir
Alternative — from the Zitadel database
kubectl exec -n ask core-pg-1 -- \
  psql -U postgres -d zitadel -tA \
  -c "select id, name from projections.organizations1 order by creation_date limit 5;" \
  2>/dev/null \
  || kubectl exec -n ask core-pg-1 -- psql -U postgres -d zitadel -c "\dt projections.*org*"

Verify: you have a numeric org ID copied.

Step 3 — Create the service (machine) user

Console → Users → Service Users → New.

Field Value
User Name core-service
Name / Description ASK Core Service (machine account)
Access Token Type Bearer

Create it, then open the new service user. Note its Resource Id (the service user's own ID) if you want it for records.

Verify: the core-service service user exists under Service Users.

Step 4 — Grant management rights (instance-level)

core-service creates and manages organizations in Zitadel (IAMCreateOrganizationRequest, add-org-domain, org IDP config) — an instance-level operation. So the service user needs an IAM (instance) manager role, not an org-scoped one. Granting Org Owner alone would let it manage one org but not create new ones.

Grant it at the instance level: top-right → Default settings (gear) → the Managers card → + → Add a Manager:

  1. User → select the core-service service user.
  2. Role → check Iam Org Manager (least-privilege: create/manage orgs + their users, PATs, IDPs, sessions). Uncheck Iam Owner — that also grants instance settings (SMTP, providers) which core-service does not need.
  3. Add.

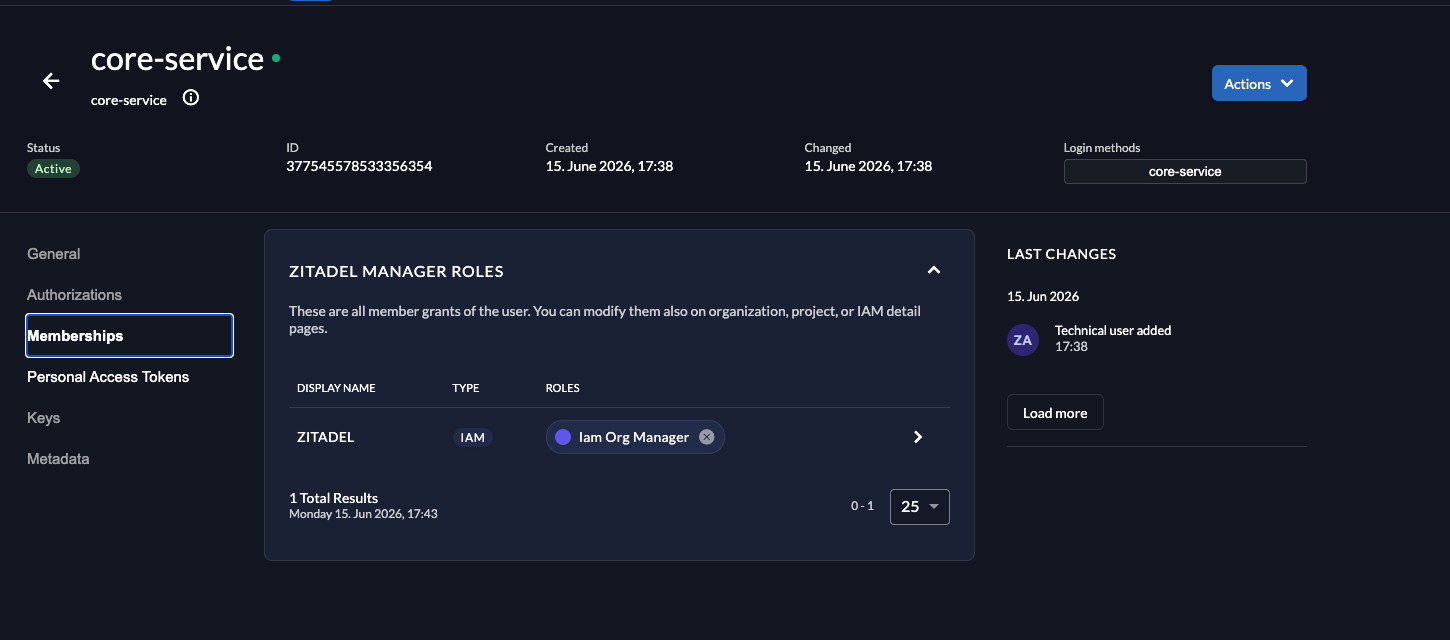

Add a Manager — instance-level IAM roles

Least privilege

  • Iam Org Manager is the right default — it covers org creation + user/PAT/session/IDP management without full instance ownership.
  • Iam Owner is the unblock-everything fallback. Use it only if Step 8 validation shows a 403 that Iam Org Manager can't satisfy — then document exactly which call needed it.

Verify: the core-service service user appears in the instance Managers list with Iam Org Manager.

Step 5 — Mint the Personal Access Token (PAT)

Open the core-service service user → Personal Access Tokens → New.

  • Optionally set an expiry (production: rotate on a schedule; air-gap dev: a long expiry is fine).
  • Copy the token immediately — it is shown only once.

Verify: you have the PAT string copied (a long opaque token).

Step 6 — Wire the PAT into Vault

The core-service-secret ExternalSecret reads IAM_SERVICE__PAT from Vault (property value). Replace the placeholder:

export VAULT_ADDR=https://vault.cl1.sq4.aegis.internal
vault kv put secret/ask/core-service/auh1-dev/IAM_SERVICE__PAT value="<PASTE-PAT>"

# force the ExternalSecret to re-pull now (else it refreshes within 1m):
kubectl annotate externalsecret -n ask core-service-secret force-sync="$(date +%s)" --overwrite
# confirm the K8s secret updated:
kubectl get secret -n ask core-service-secret -o jsonpath='{.data.IAM_SERVICE__PAT}' | base64 -d | head -c 12; echo '…'

Verify: the decoded secret value starts with your PAT (not placeholder).

Step 7 — Wire the org ID into config (GitOps)

default_org_id lives in the Dynaconf TOML. Update both values files (chart-internal + mod-ask-devops), replacing the placeholder under [mod-auh1-dev-ask.iam_service]:

[mod-auh1-dev-ask.iam_service]
base_url = "http://core-service-zitadel.ask.svc.cluster.local:8080"
public_base_url = "https://sso.ask.mod.auh1.dev.dir"
pat = "@format {env[IAM_SERVICE__PAT]}"
default_org_id = "<RESOURCE-ID>"      # ← from Step 2
timeout = 30
session_lifetime = "2592000s"

Files:

  • ask-core-service → helm/environments/values-mod-auh1-dev-ask.yaml
  • mod-ask-devops → applications/core-service/values-mod-auh1-dev-ask.yaml

Commit + push both, then re-sync. The config-toml ConfigMap changes → Stakater Reloader restarts the core-service pod automatically:

kubectl -n argocd patch application mod-auh1-dev-ask.ask.core-service --type merge \
  -p '{"operation":{"initiatedBy":{"username":"manual"},"sync":{"revision":"HEAD"}}}'

Verify: the new pod starts with the updated ConfigMap (override.toml shows the real default_org_id):

kubectl exec -n ask deploy/core-service -- sh -c 'grep default_org_id /app/config/override.toml'

Step 8 — Validate the integration

8a. PAT valid directly against Zitadel (proves the token + the Iam Org Manager role):

PAT='<your-PAT>'   # local shell var; keep it out of logs/history
# token valid → returns the core-service machine user
curl -sk https://sso.ask.mod.auh1.dev.dir/auth/v1/users/me \
  -H "Authorization: Bearer $PAT" | jq '{id: .user.id, name: .user.userName}'
# org-manager role works → reads the org
curl -sk https://sso.ask.mod.auh1.dev.dir/management/v1/orgs/me \
  -H "Authorization: Bearer $PAT" -H "x-zitadel-orgid: 377526562817377089" | jq '{id: .org.id, name: .org.name}'
Expect name: "core-service" / id: 377545578533356354, and the ZITADEL org. 401 = bad PAT; 403 = role missing a grant (escalate per Step 4).

8b. The values reached the running pod:

# PAT now present in the running env
kubectl exec -n ask deploy/core-service -- printenv IAM_SERVICE__PAT | head -c 12; echo '…'

# readiness still green (IAM health check)
kubectl exec -n ask deploy/core-service -- \
  sh -c 'wget -qO- http://localhost:8000/api/v1/health/ready' ; echo

# exercise an auth/login flow from the UI or an API call that hits Zitadel,
# and watch for successful management API calls (no 401/403 from Zitadel):
kubectl logs -n ask deploy/core-service --tail=40 | grep -iE "iam|zitadel|401|403|pat|org"

Done when: an auth flow against core-service succeeds end-to-end (session created in Zitadel), with no 401/403 from the management API in the logs.

What's stored where (summary)

Value Source of truth Delivered via Consumed as
PAT Vault secret/ask/core-service/auh1-dev/IAM_SERVICE__PAT ExternalSecret → core-service-secret env IAM_SERVICE__PAT → @format in TOML → iam_service.pat
Org ID Git (TOML in values files) ConfigMap core-service-config-toml → /app/config/override.toml iam_service.default_org_id

Production follow-ups

  • Replace Org Owner with a least-privilege manager role (Step 4).
  • Set a PAT expiry + rotation procedure; on rotation, re-run Step 6 only.
  • The same pattern applies to every new environment — only the org ID + PAT differ.
